SPECIFICATION

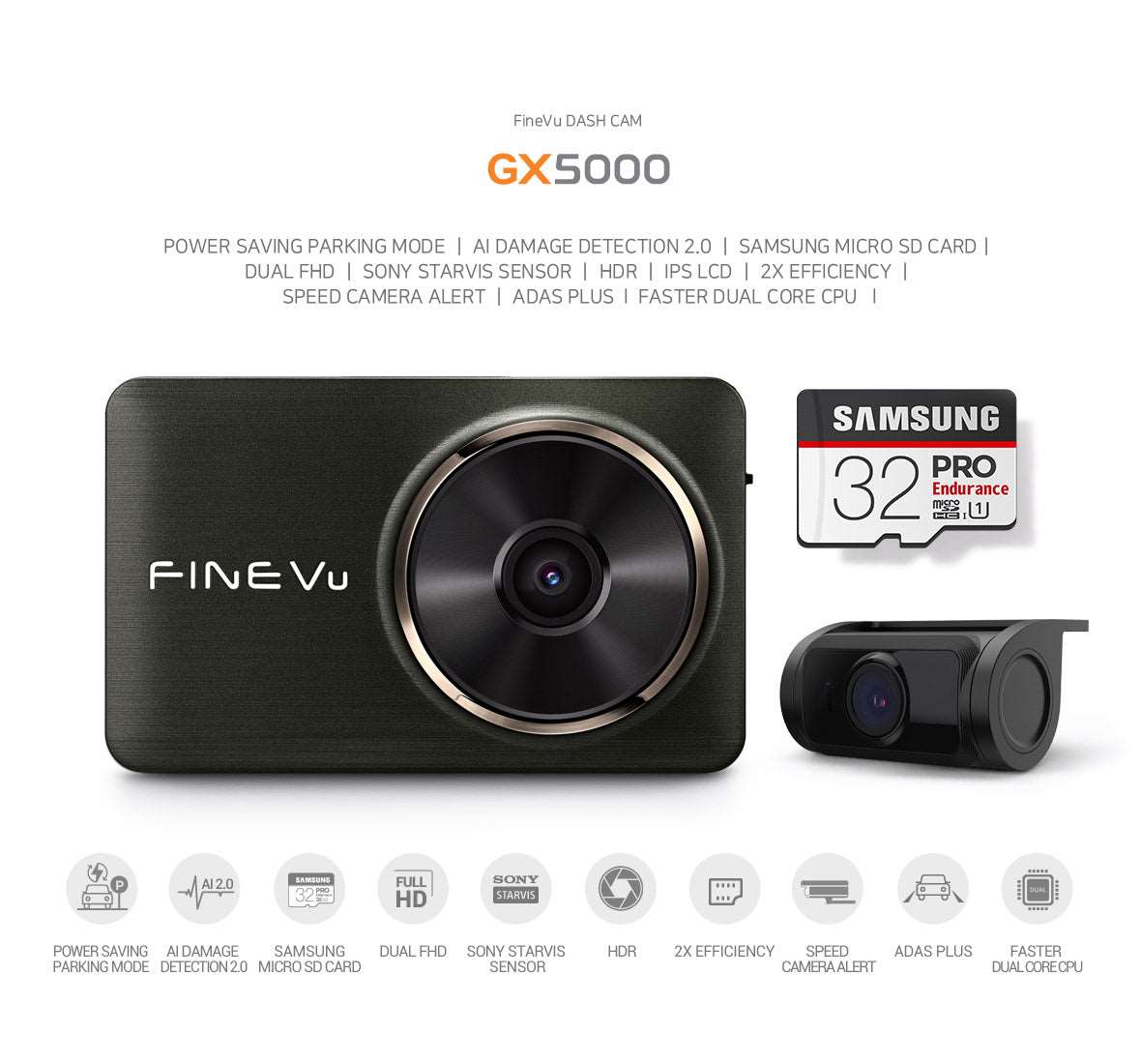

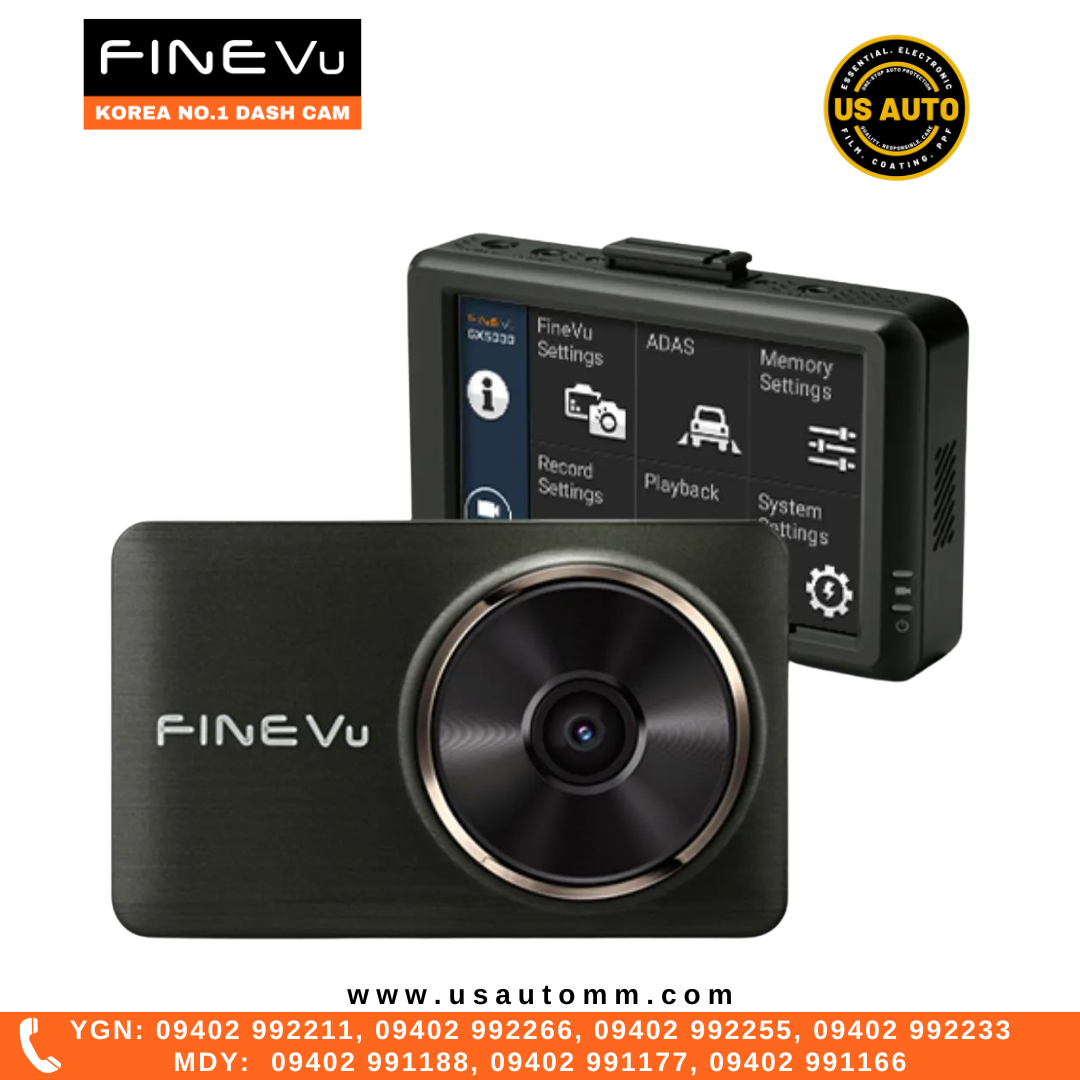

Model name FineVu GX5000
Dimension/Weight Front : 98.5 x 64.8 x 31.04mm / 107.5g
Rear : 53.4 x 30.3 x 41.5mm / 26.5g Weight including the mount
Memory Capacity Micro SD Card (32GB / 64GB / 128GB) Class 10 or above recommended /
SDXC compatible
Recording mode Driving recording 1 min. interval recording
Driving event(impact) recording 20 sec. recording(10 seconds before and after detection)
Manual recording 20 sec. recording(10 seconds before and after detection)
Parking (impact & motion detection) recording 20 sec. recording(10 seconds before and after detection)
Driving time lapse recording 30fps recording after impact detected
Parking time lapse recording 30fps recording after impact detected
Lens Front : Full HD wide-angle lens
Rear : Full HD wide-angle lens

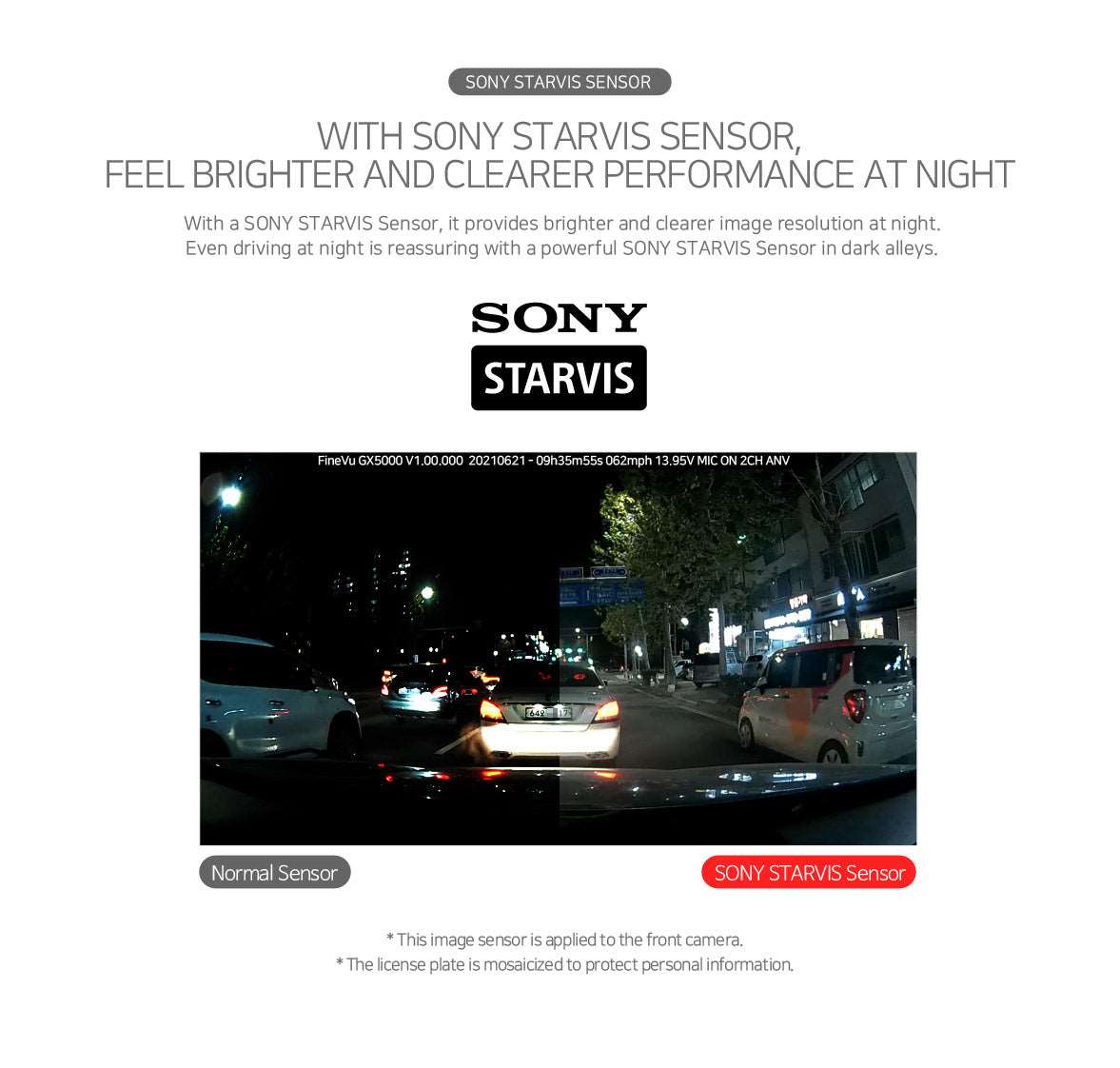

Image sensor Front : 2.13M pixels, ½.8" SONY Exmor R STARVIS Image Sensor
Rear : 2M pixels, 1/3" CMOS Image Sensor
Viewing angle Front : more than 145° of the opposite angle /
115° of the horizontal angle / 62° of the vertical angle
Rear : more than 134° of the opposite angle /
105° of the horizontal angle / 60° of the vertical angle

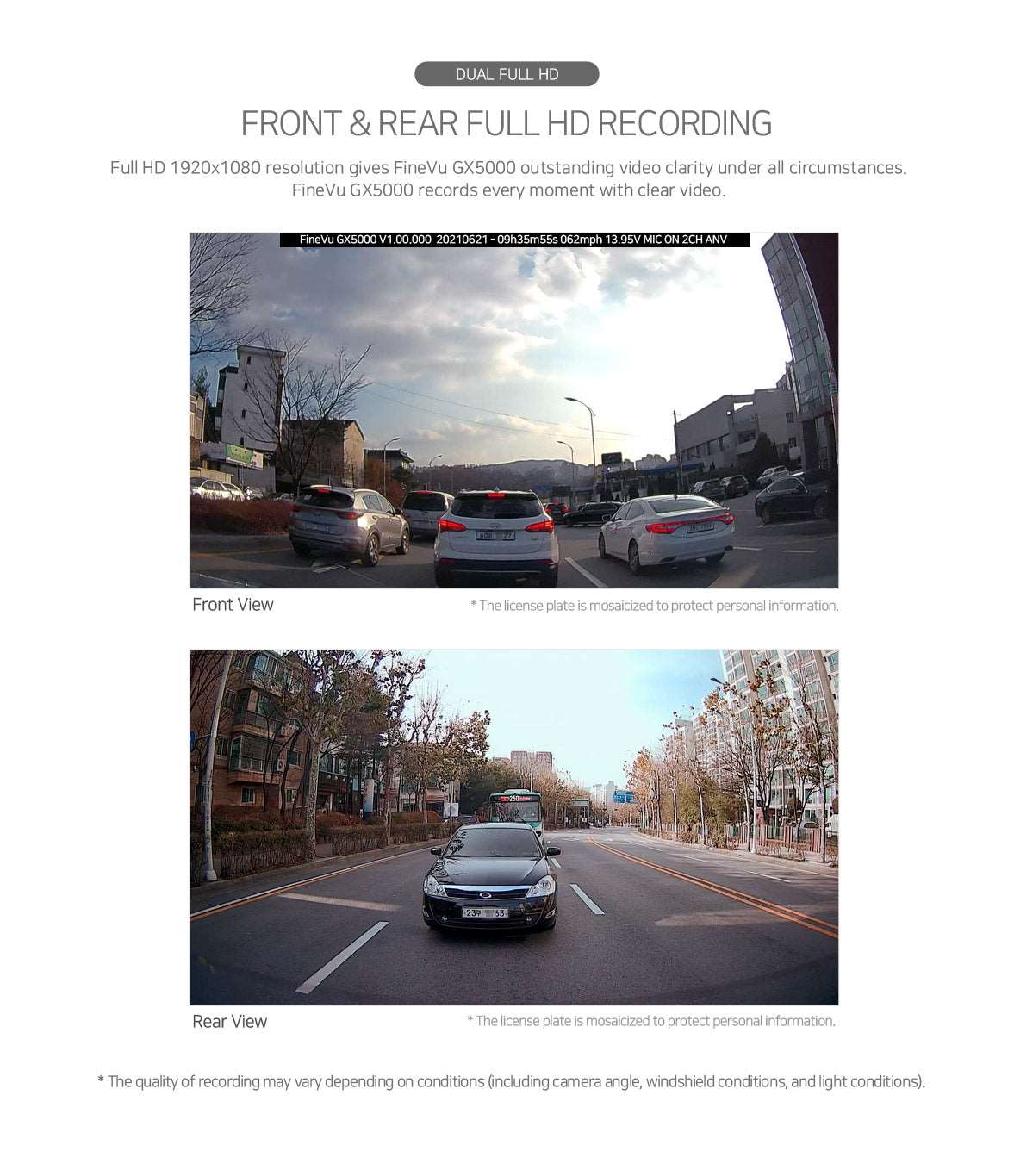

Video Front : 1920X1080p@30fps
Rear : 1920X1080p@30fps

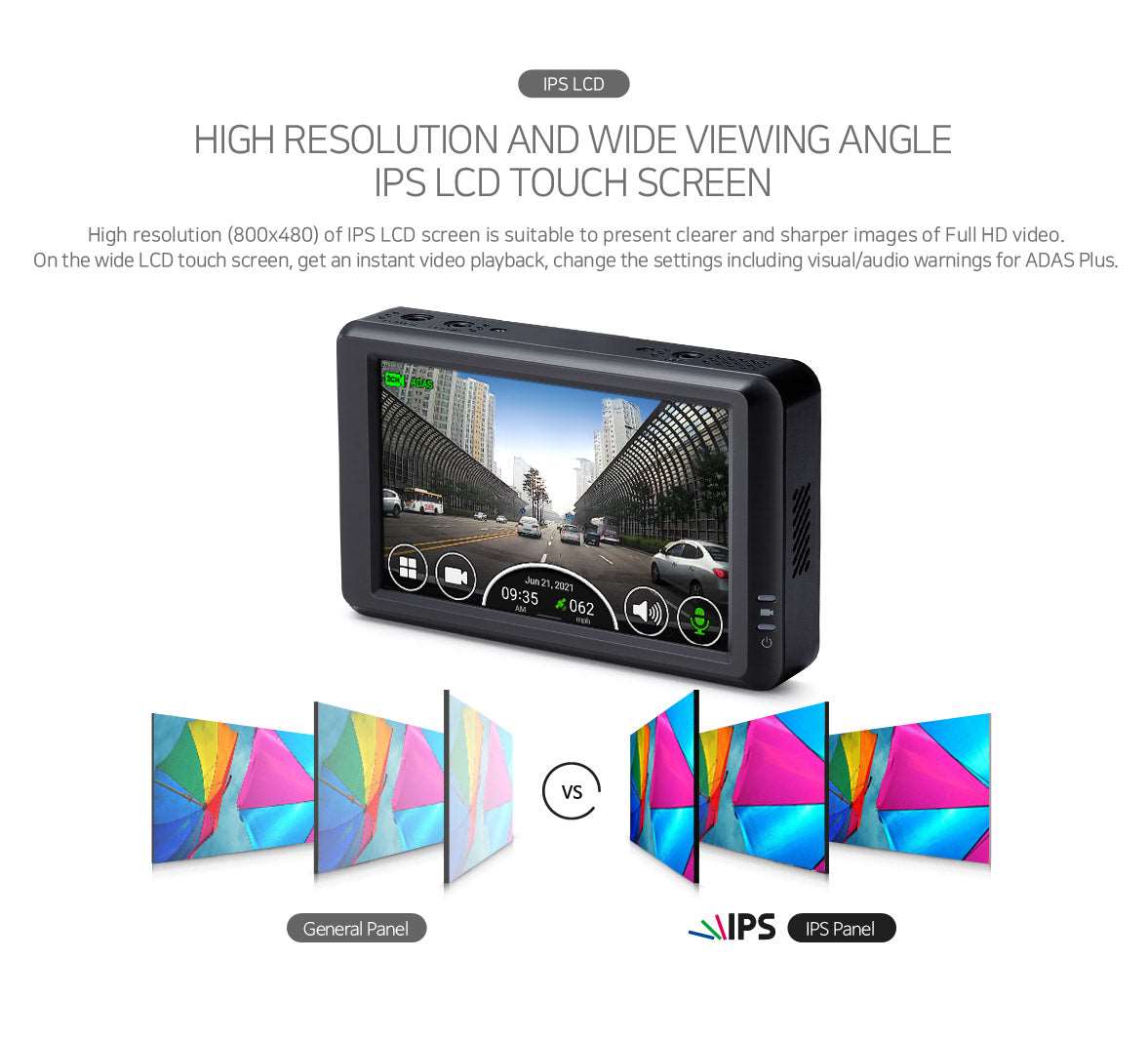

Display 3.5" IPS LCD (800 x 480) with Touch
Microphone Built-in
Speaker Built-in
Acceleration sensor 3-axis acceleration sensor +2g / -2g
Input power DC 12V - 24V
Battery Super capacitor Supply power to safely store video in case of external shutoff
Power consumption 4.1W Based on 2ch, GPS ON
Operation/
Storage temperature Operation temperature -20℃~70℃ /
Storage temperature -30℃~80℃

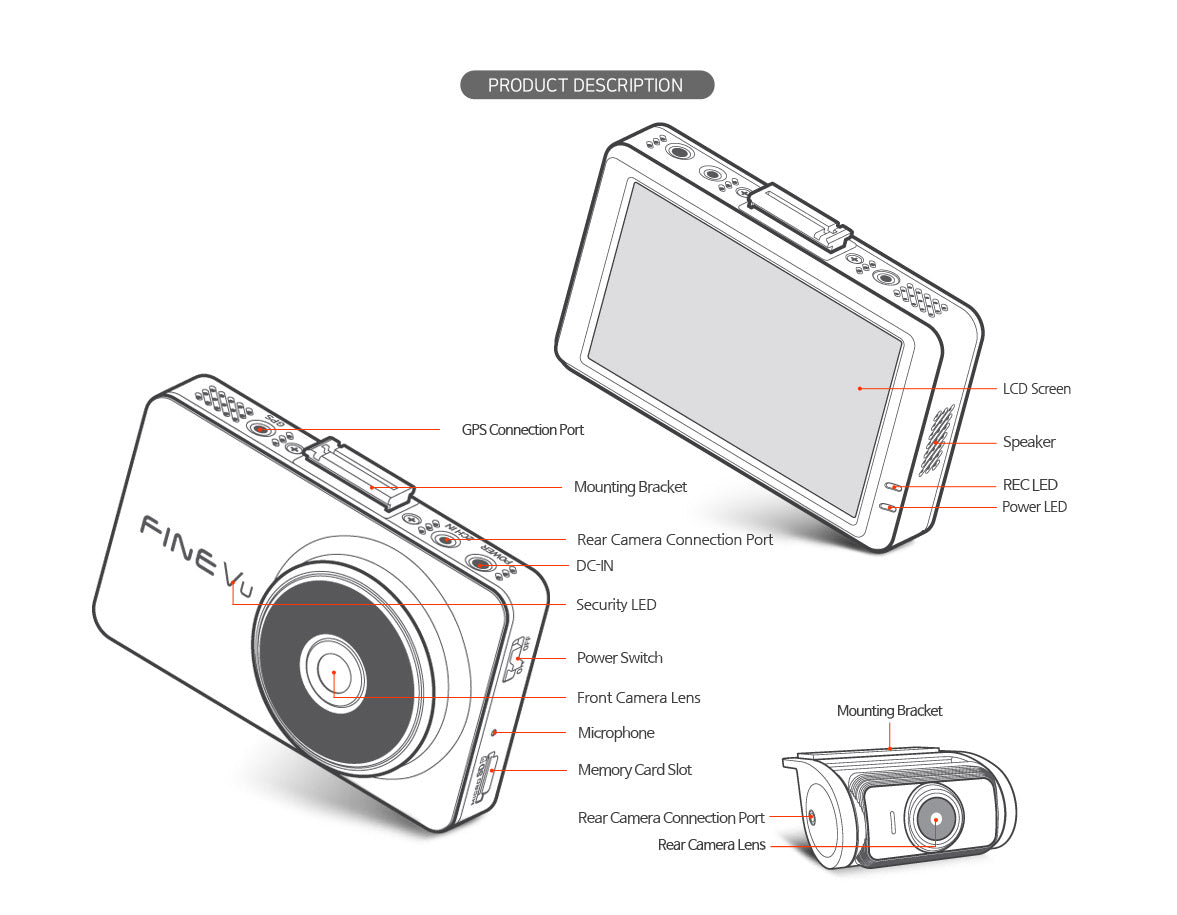

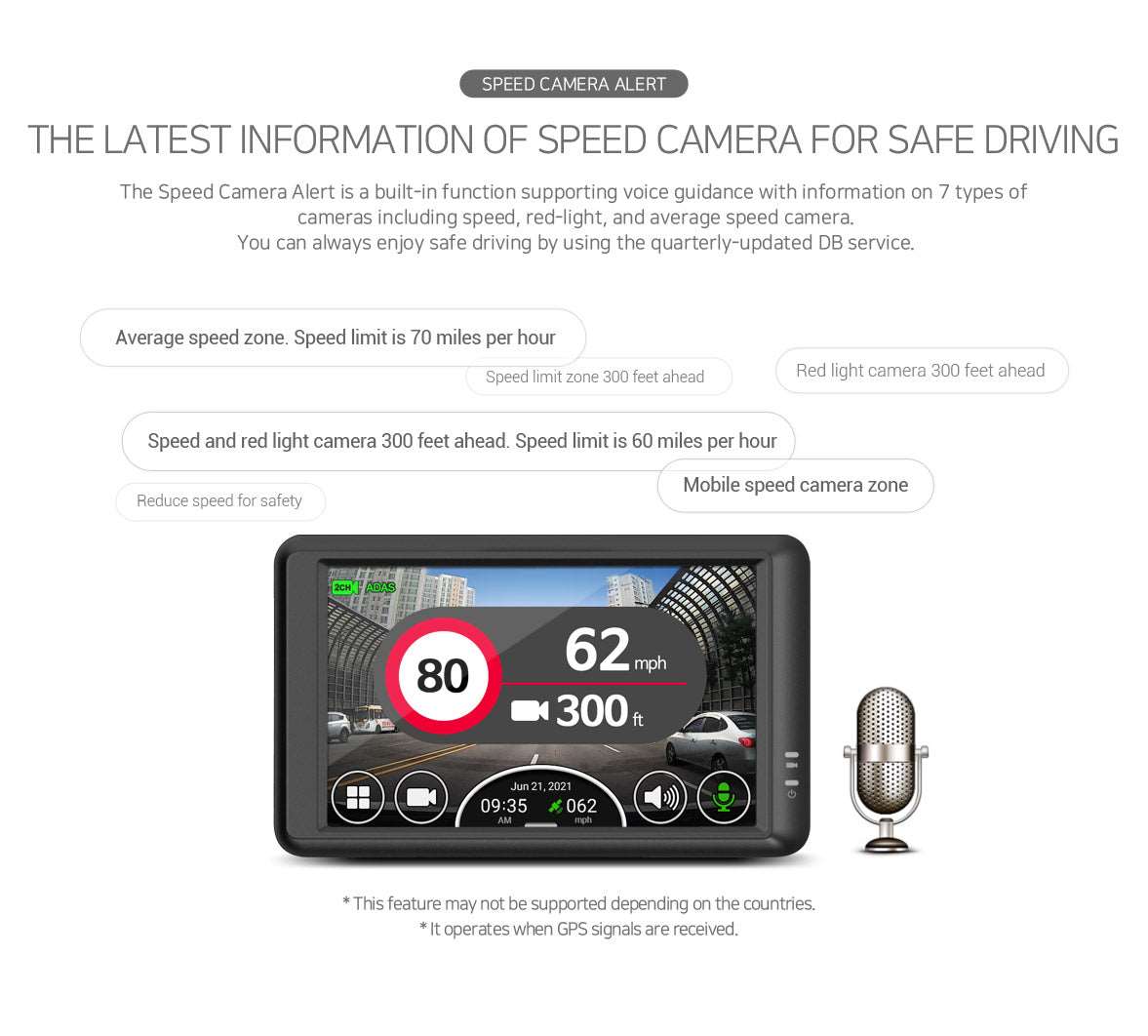

Interface Power port (3.5 ø), Rear Camera Connection Port (2.5 ø), External GPS Port (2.5Φ) Vehicle speed, ADAS and Speed Camera Alert operate under GPS reception
